A versatile repair option for roll-form rack damage, available with protruding, non-protruding, and no-deflector configurations depending on aisle conditions and protection needs.

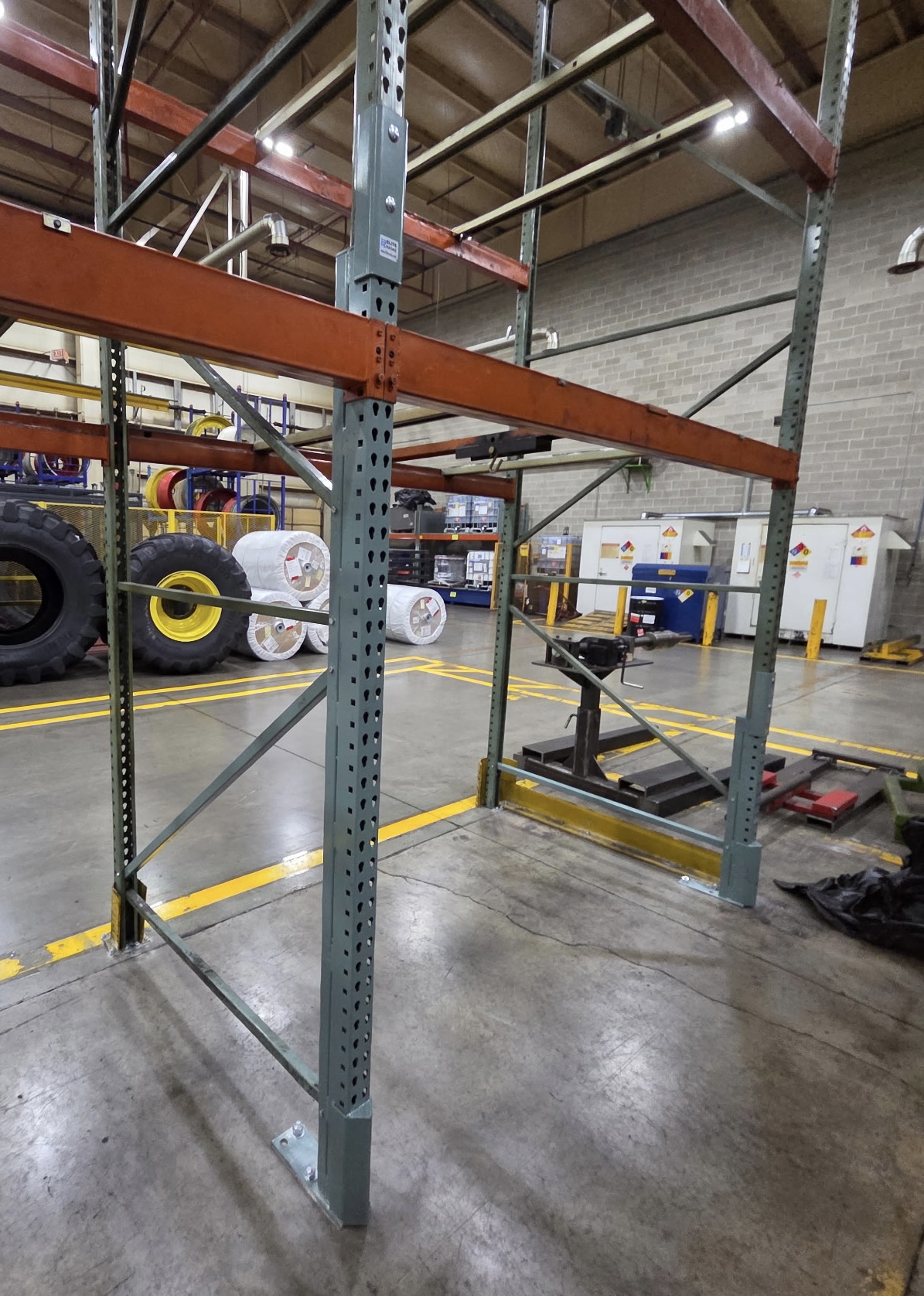

EZ Roll-Form Repair Kits are designed to restore damaged roll-form rack columns while preserving beam adjustability and supporting multiple protection configurations. These kits can reuse existing factory bracing when possible or accept new bracing when needed.
Available with non-protruding, protruding, or no deflector depending on site conditions.
Allows maximum beam adjustability and can reuse undamaged factory strutting when possible.
A strong repair solution for roll-form systems without the heavier double- or single-leg kit approach.
This reinforced column kit offers ultimate repair and protection against outrigger impact damage, the most common cause of frame damage. Made of the same punch style as the parent frame.
Recommended for narrow aisles due to 1/4″ deflector protrusion. It accommodates most beam levels above 12”, reuses existing factory bracing or accepts new bracing when needed, and reinforces the front post with a backer channel.
Available with V-nose, non-protruding, or internal deflectors for added bottom-column protection. Includes a massive 3/8” thick oversized footplate with two 3/4” x 7” anchors for high impact resistance and minimal twisting.
This reinforced column kit offers ultimate repair and protection against outrigger impact damage, the most common cause of frame damage. Made of the same punch style as the parent frame.
Recommended for wider aisles due to 1″ deflector protrusion. It accommodates most beam levels above 12”, reuses existing factory bracing or accepts new bracing when needed, and reinforces the front post with a backer channel for additional strength.
This Pallet Rack Repair Kit returns any frame post to original specifications. The Frontline Repair Kit is best for VNA and rear post applications.
It reuses existing factory bracing or accommodates new bracing when needed. It accommodates nearly all beam heights while maximizing your repair budget, allows for maximum beam adjustability, and can reuse undamaged factory strutting.
An additional backer is added for increased impact resistance.
Send us project details, rack information, or photos and we’ll help determine which EZ Roll-Form configuration is the right fit for your facility.
