Explore our column guard families. Click “See More” on any item to reveal full details and specifications.

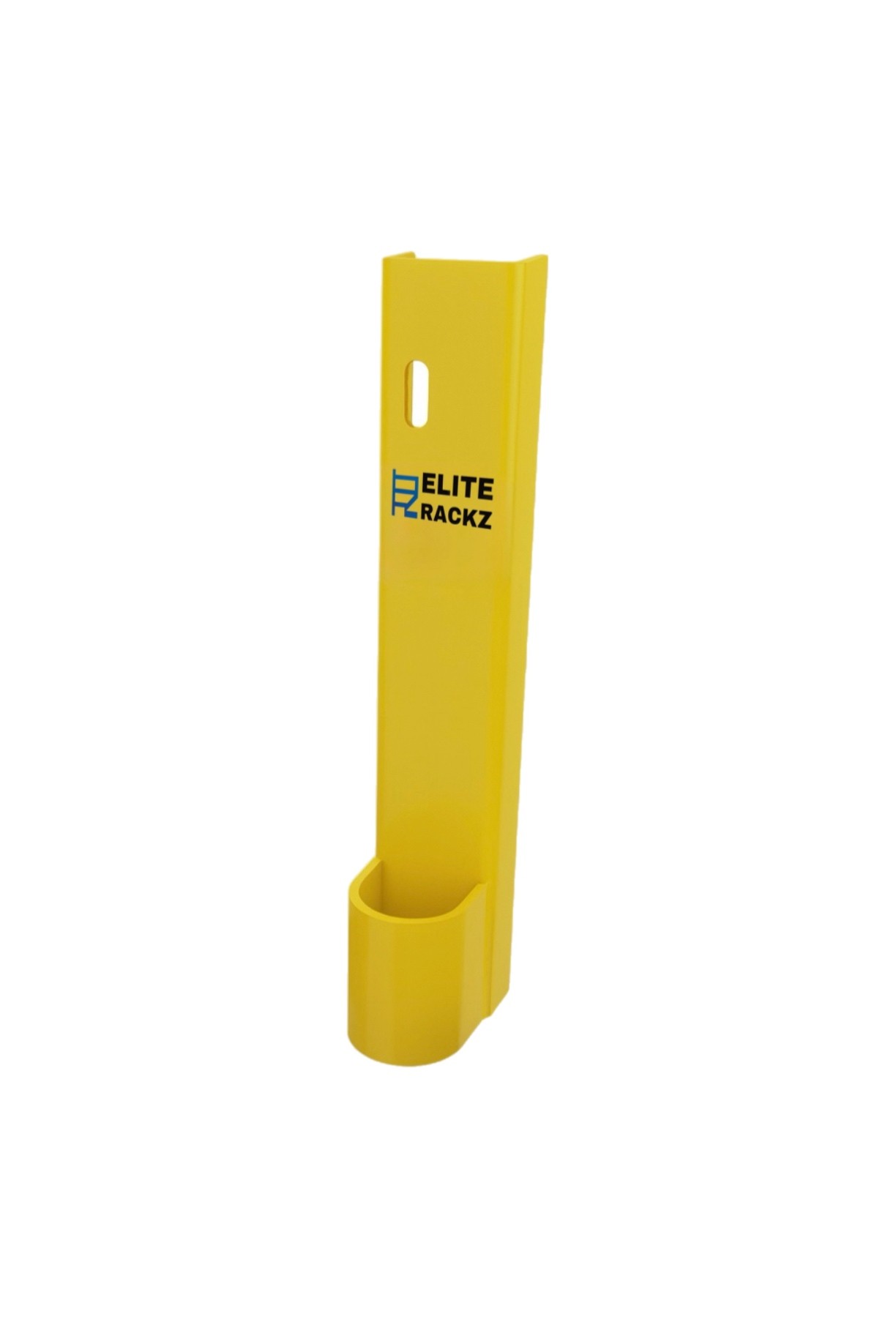

EZ Guard Shield
Long description and full specifications are available below. Use the “See More” button to expand.
Long Description
The EZ Guard Shield is a bolted protective guard that may be installed anywhere on the column to prevent damage from forklifts or product impact.
Made with robust 1/4” steel in variable customizable lengths. Great at shielding column from accidental forklift truck counterbalance weights and overhead guard collision.
Specifications
RACK SYSTEM: All
CATEGORY: Protection / Reinforcement
STEEL GAUGE: Rugged 1/4″ steel
ROLL/STRUCTURAL: Both
STYLE: Bolt Style
LENGTH: Standard 12”, 18” or 24” (Custom lengths available)
WIDTH: All
HARDWARE: Two grade 5 fasteners Included
COLOR: Powder coat painted to standard safety yellow
PUNCH: Universally compatible with all punch styles
CUSTOMIZABLE: Yes

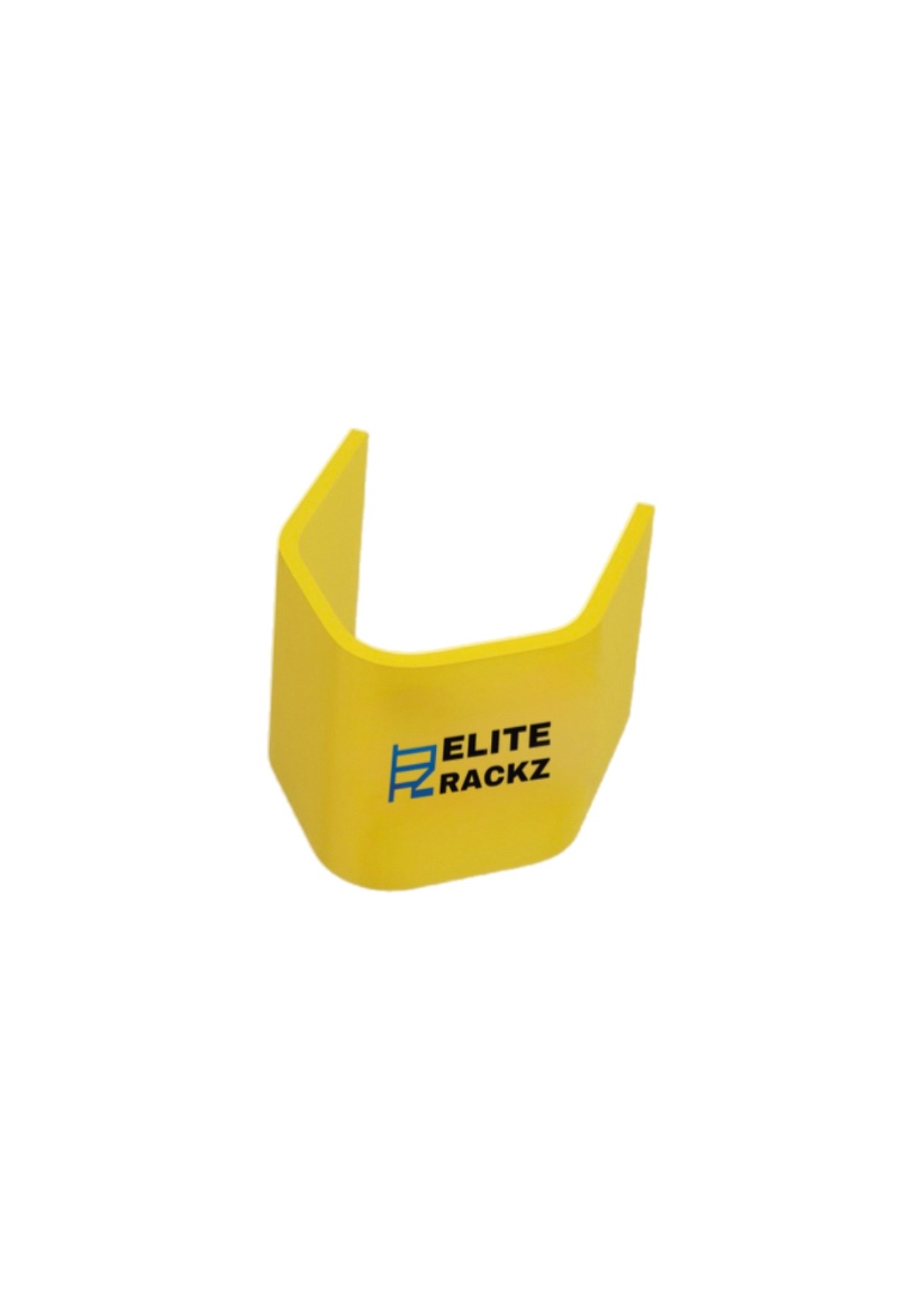

EZ Guard V-Nose
Long description and full specifications are available below. Use the “See More” button to expand.
Long Description
The EZ Guard V-Nose is a pallet rack guard that protects racks from outrigger damage. The standard 4″ high 3/8″ thick steel guard uses a 3/4″ internal anchor that ensures ultimate impact resistance. The anchor fastens this guard to the floor rather than to the column. Thus transferring impact energy to the guard rather than the column. Designed to prevent column twisting with single anchored footplates.
The 3/8″ thick footplate can be set flush or below the guard sufficiently to accommodate various footplate dimensions. Highly customizable, the EZ Guard column protector may be designed to accept various column widths and setbacks. It is not a flimsy wrap around boot, bolted angle or other gimmick. It is a heavy-duty steel column guard that will protect your pallet racks from costly future damage.
Specifications
RACK SYSTEM: All
CATEGORY: Protection
STEEL GAUGE: Rugged 3/8” throughout
ROLL/STRUCTURAL: Both
STYLE: Single Anchor
HEIGHT: Standard 4″
NUMBER OF ANCHORS: 1 internal 3/4″ X 7″ anchor included
ANCHOR DIMS: 3/4” x 7” for high impact resistance and minimal twisting
COLOR: Powder coat painted to standard safety yellow
PUNCH: Universally compatible with all punch styles
CUSTOMIZABLE: Yes
FOAM PLUG: Optional foam plug eliminates the trash build-ups
WARRANTY DESCRIPTION: Mac Rak offers a Lifetime Warranty for all our products against defects in manufacturing or material workmanship.

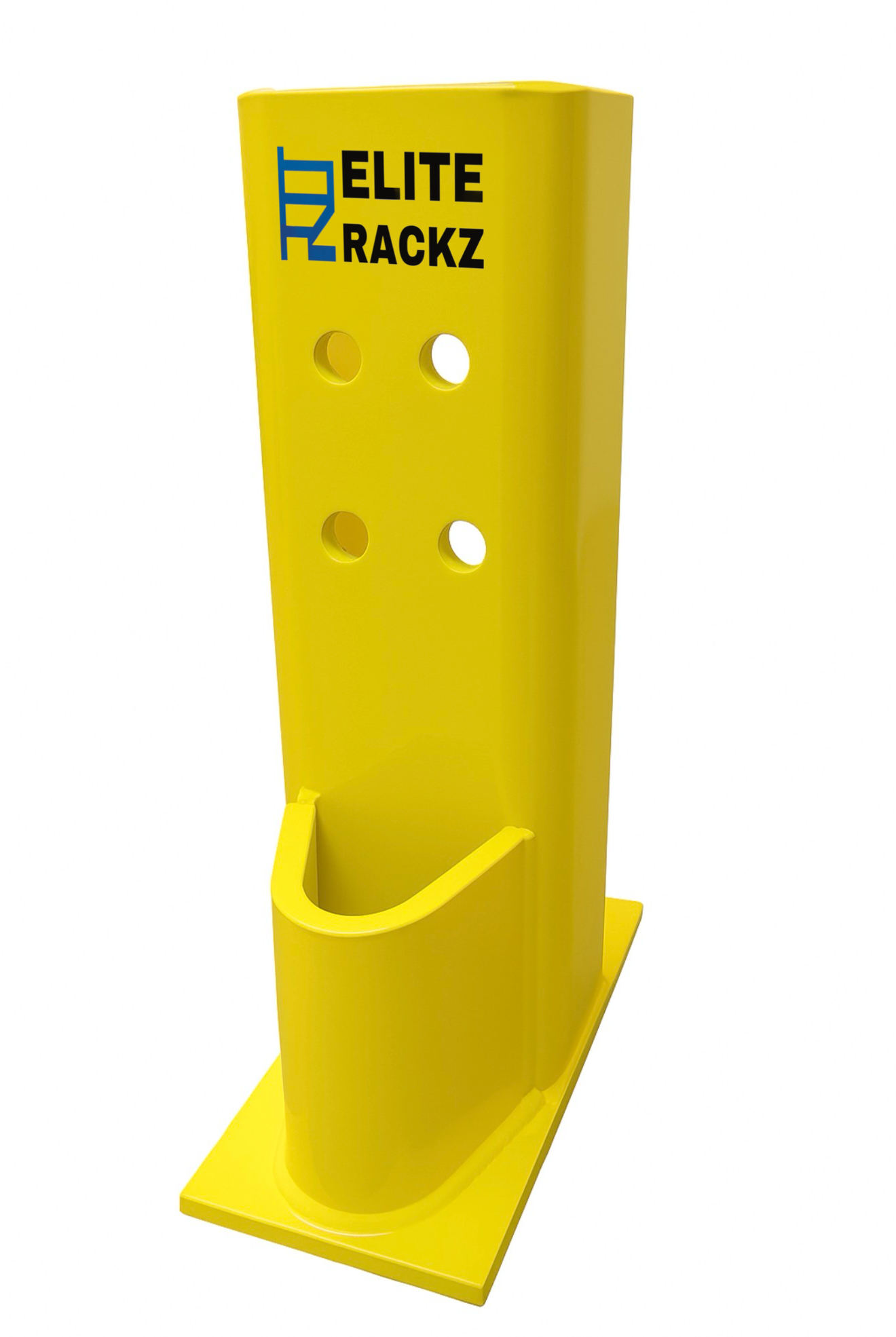

EZ Guard Pro
Long description and full specifications are available below. Use the “See More” button to expand.
Long Description
The EZ Guard PRO is a dual purpose repair and high impact outrigger protector. It provides ultimate impact protection
for the most vulnerable frame section, the bottom 12″ of the front column. This is a high impact deflecting kit.
Laser focused, addresses the largest single catagory of column damage with the most effective solution. Does not require
replacing undamaged factory bracing. Accommodate beam levels 20” or higher. It is not a wraparound post protector or
plastic gimmick. This engineered kit becomes part of the post and prevents twisting. It is available in protruding and
non-protruding versions.
Specifications
RACK SYSTEM: All
CATEGORY: Repair and protection
STEEL GAUGE: 1/4″ & 3/8″ Steel
ROLL/STRUCTURAL: Both
STYLE: Bolted
SEAT HEIGHT: Standard 4″, 6″ or 8″
NUMBER OF ANCHORS: Two 3/4″ × 7″
ANCHOR DIMS: 3/4” × 7” for high impact resistance and minimal twisting
FOOTPLATE DIMS: ⅜” 4” × 12” Standard
COLOR: Any standard rack color powder coat finish*
PUNCH: Non-punched
PROTECTOR TYPE: Standard non-protruding
CUSTOMIZABLE: Standard front or side bolt connection
